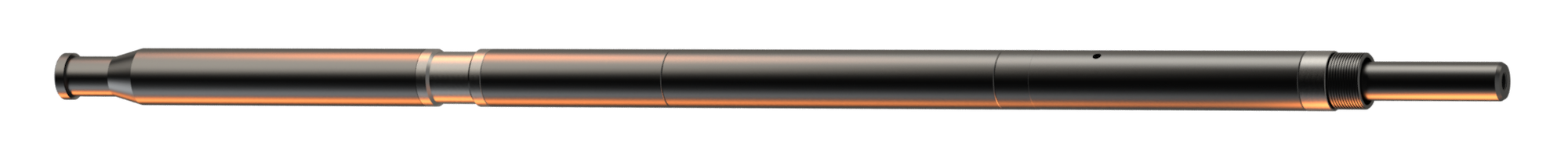

It delivers precise linear force up to 90,000 lbs with a standard 10-inch stroke, making it ideal for deploying or retrieving permanent and temporary plugs and packers in lower and upper completion operations. Rated for pressures up to 15,000 psi and temperatures to 135°C (with high-temperature options available), this compact tool—under 50 inches in overall length—uses an alkaline battery system to eliminate the risks and logistics of traditional explosive or hydraulic methods, ensuring safer and more straightforward interventions in various well conditions.

Actuation Mechanism: Features a battery, electric motor, and gearbox assembly that generates axial force from 90,000 to 150,000 pounds (40-45 tons in certain configurations), providing consistent performance without pyrotechnic risks or hydraulic pressure dependencies.
