Raven HP
%25201.png)

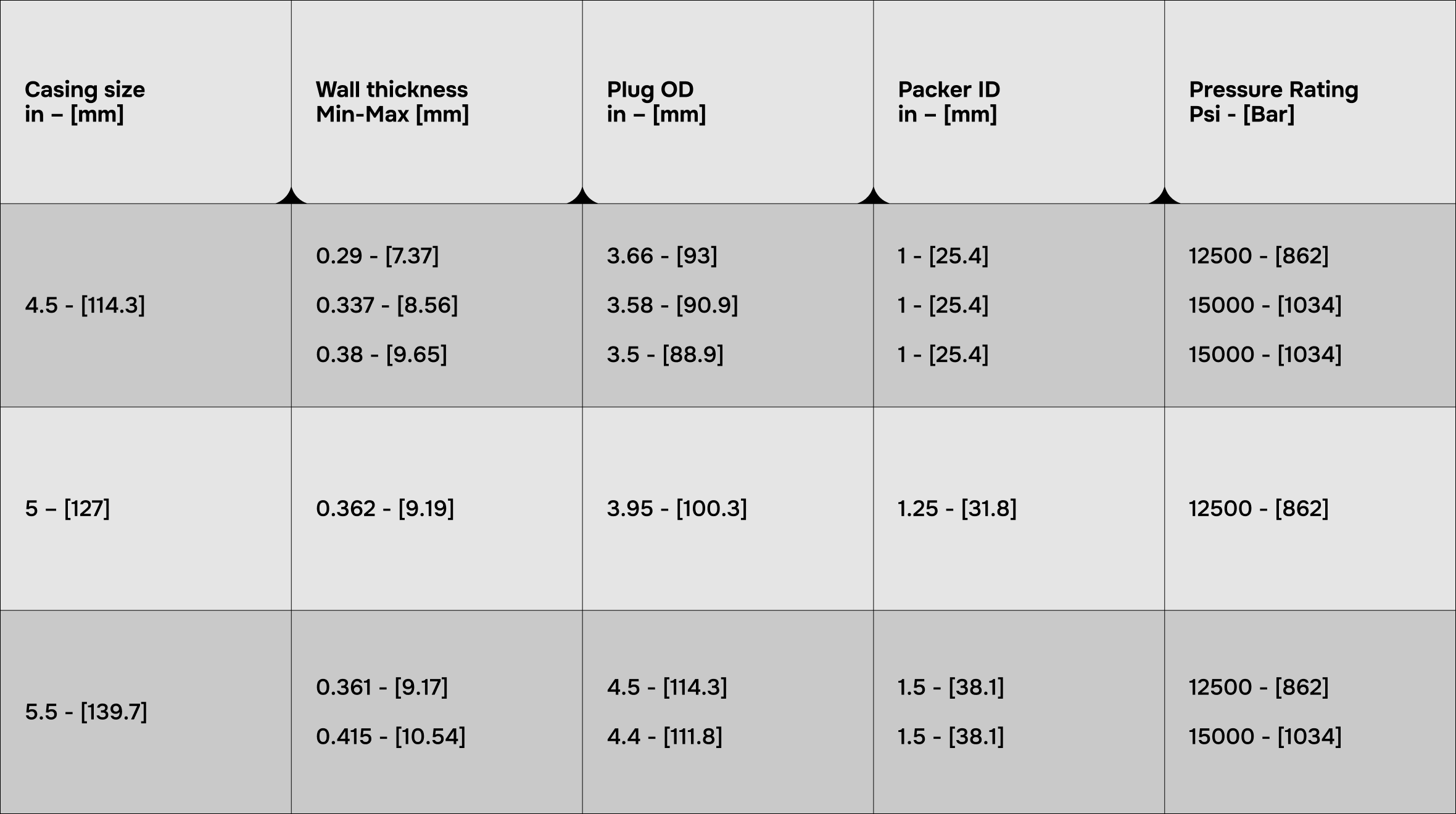

Dissolvable Frac Plug
High-pressure rated Frac Plug with predictable dissolve rates in as little as 1% brine fluid allows isolate lower zone and perform fracturing
High-pressure rated Frac Plug with predictable dissolve rates in as little as 1% brine fluid allows isolate lower zone and perform fracturing
Having a metal-to-metal seal, with a rubber seal as backup, makes possible using for high-temperature wells.
The Plug comes in 2 versions: Ball-In-Place, or Ball Drop.
The Ball-In-Place, has the ball locked inside the WLAK, which allows the plug to be directly pressure tested.
The Ball-drop, requires the ball to be pumped down.
.png)
OSPREY is a hydraulic-set, hydraulic-release rotational liner hanger designed to suspend liners securely within intermediate or production casing strings
%25201.png)
Non-cemented hydraulic liner hanger designed for reliability and performance in demanding downhole environments
Design and manufacture of advanced service solutions for the oil and gas industry
